PERTAMINA – LOCATION: INDONESIA
Pertamina – Olefin Complex Development Project
Cracked Gas Compressor Unit – Location: Indonesia
Project Overview
Year: 2024
Client: Technip
Project Name: Pertamina – Olefin Complex Development Project
Location: Indonesia
Work Done

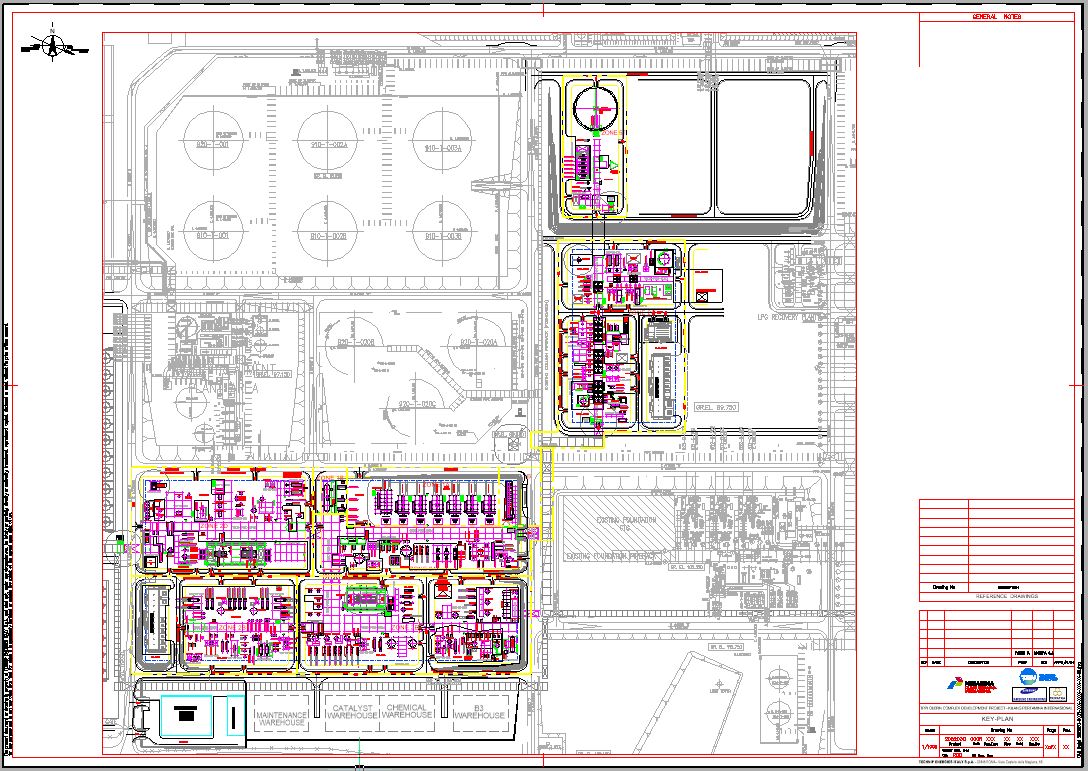

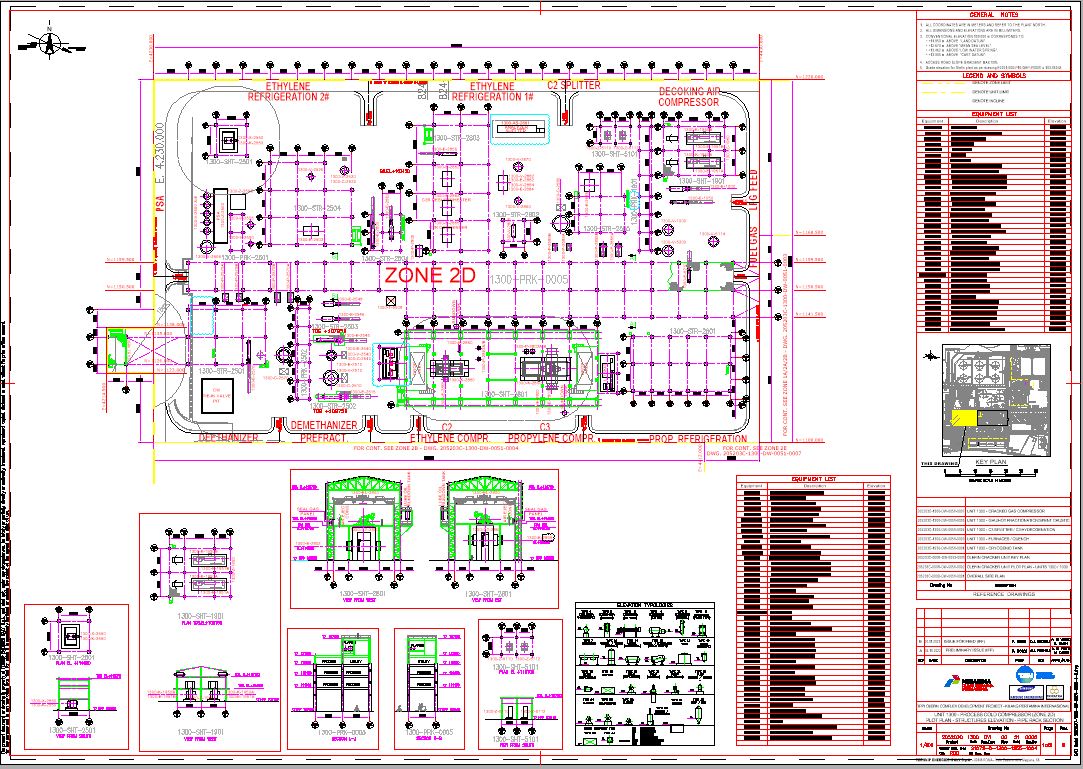

Overall Plot-Plan arrangement and sections based on project modularization criteria.

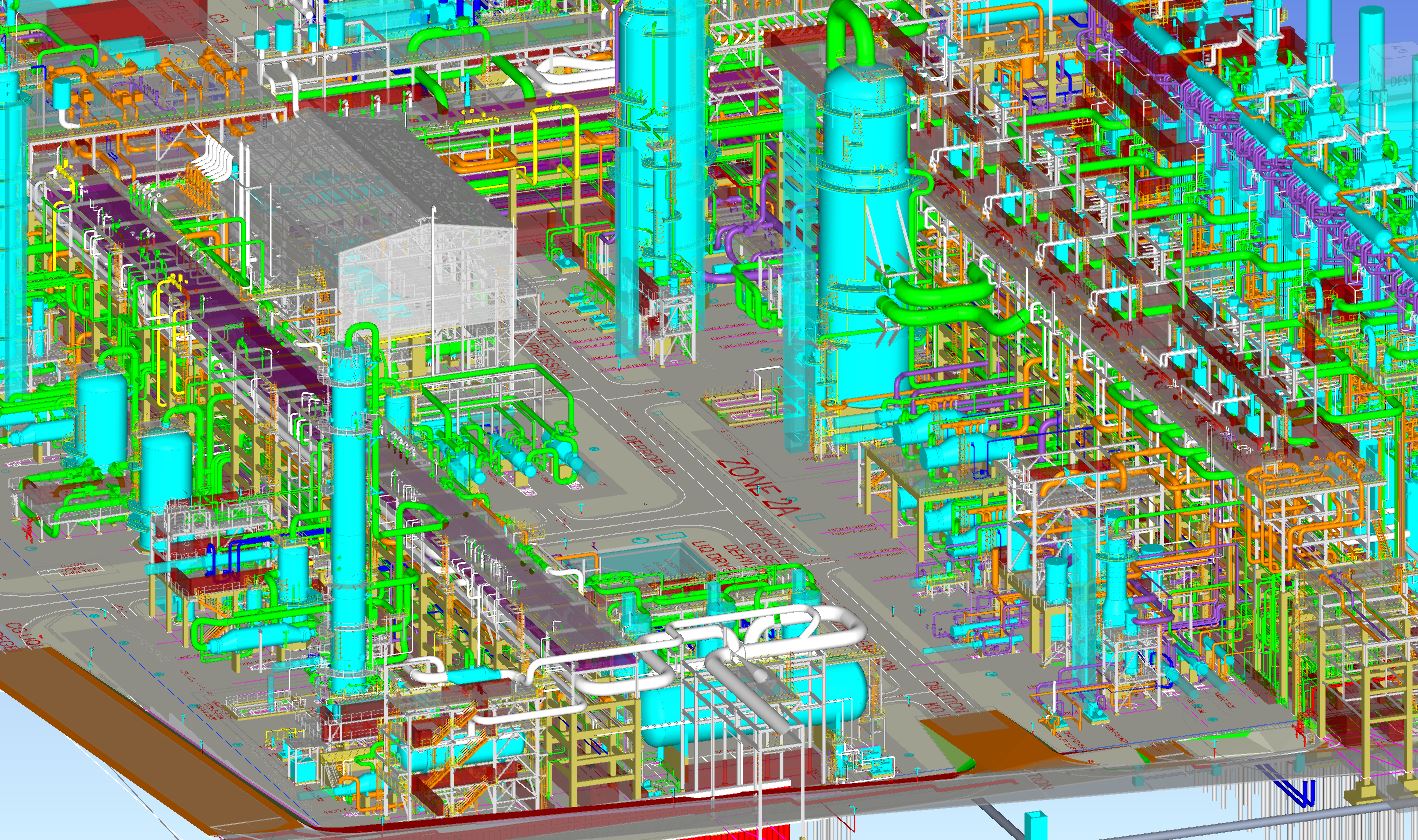

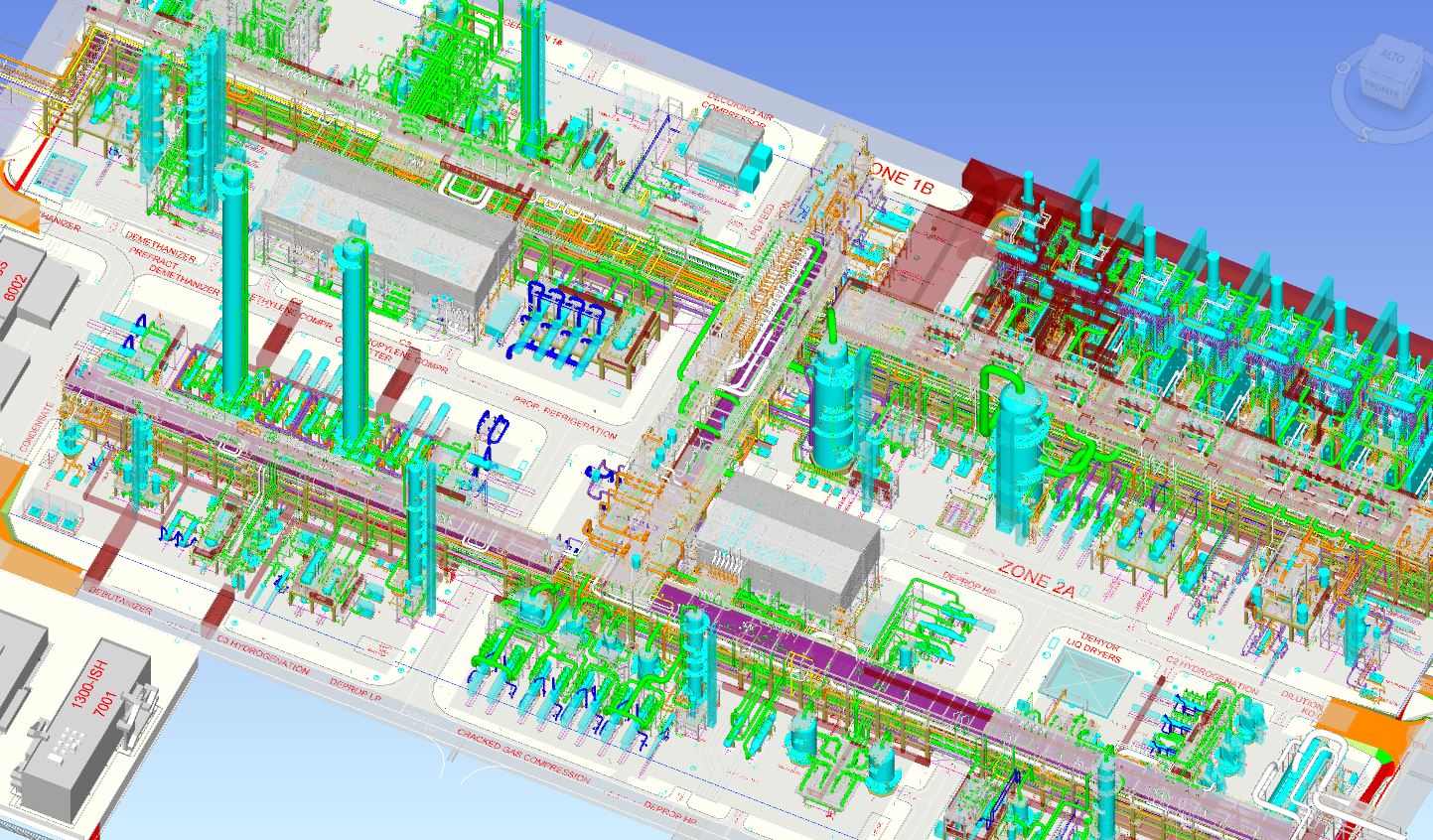

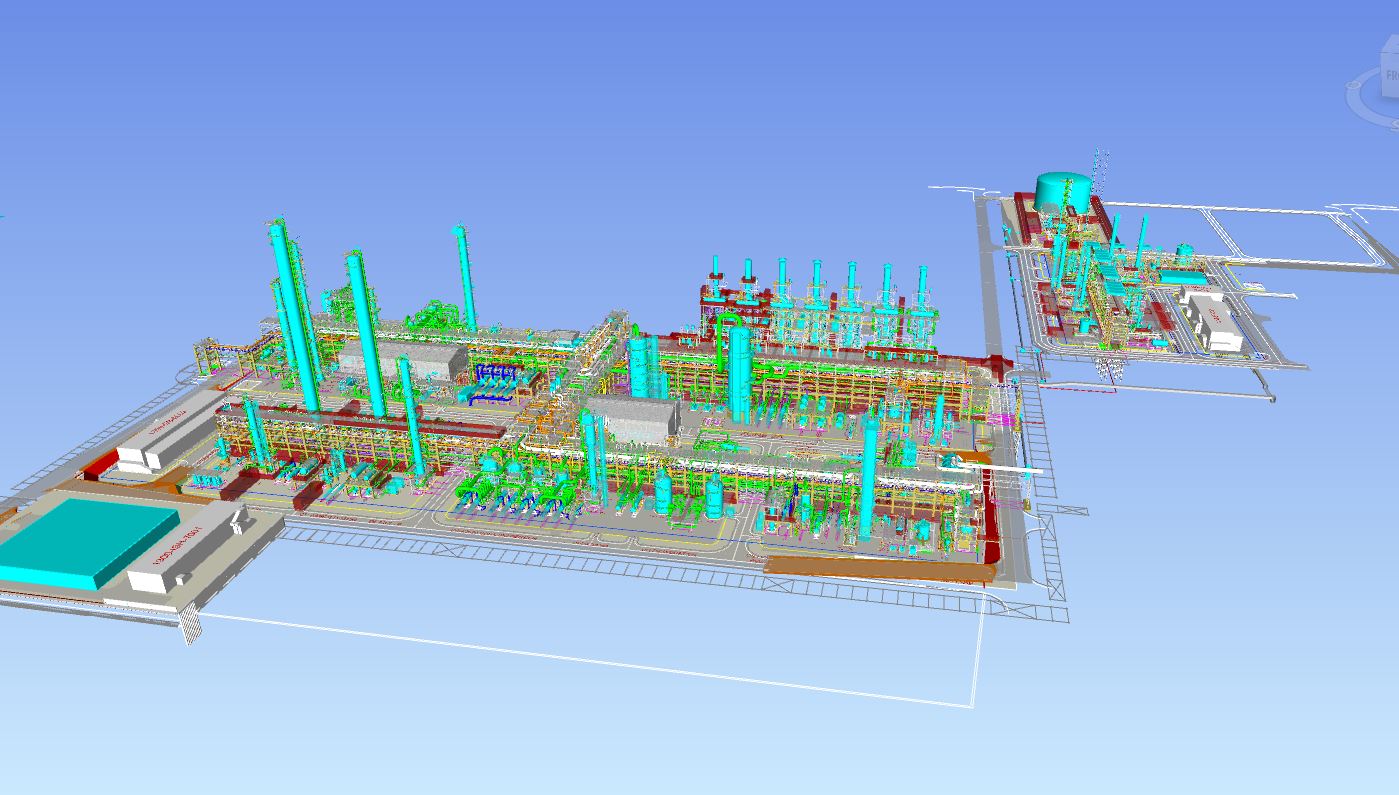

Study of the pipe rack and major piping layout, development of the 3D model with SP3D at 30% and model review.
Modeled lines of 3″ and above for the process, lines 6″ and larger for external areas, and all lines on the pipe rack. Nozzle orientation with the D/S of the equipment and two MTO emissions for cost estimation.
FEED Engineering activity with model defined at 30%.
